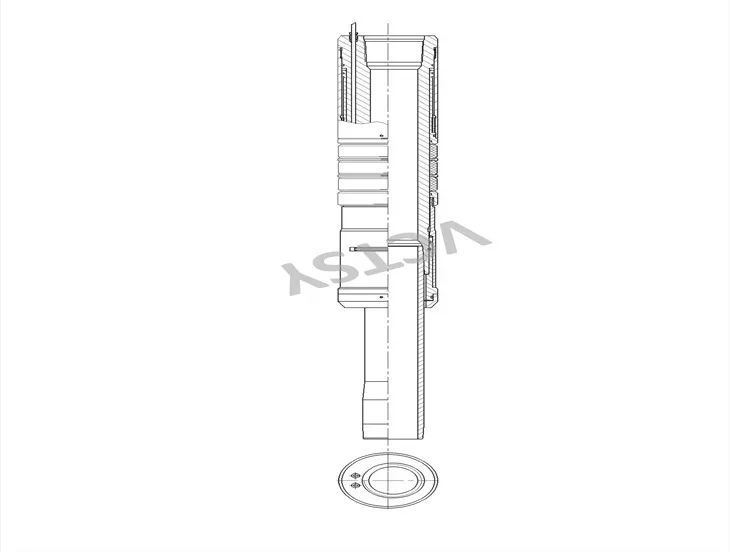

SGPT Seri Entelijan Konplete Liy Crossing Isolation Packer
● Non mak: VCTSY
● Sètifikasyon: API 11D1
● Nimewo Modèl: SGPT-278-7,SGPT-312-7,SGPT-278-962, SGPT-312-962,SGPT-412-7,SGPT-5-7,SGPT{{6 }},SGPT-7-962
● Kantite Lòd Minimòm: 10 Ansanm
● Pri: RMB/USD
● Detay anbalaj: Ka Plywood
● Tan livrezon: Jan pou chak demann
● Kondisyon Peman: T/T
● Kapasite Pwovizyon pou: Jan pou chak demann
Packer sa a ka travèse câbles. Lè packer la transmèt epi kouri antre nan tib la, presyon tib la pral mete packer la, kidonk sele tib la ak annulus aman. Yon rale dwat nan tib fè mekanis lage taye koupe pou lage.
Paramèt teknik
1.
|
Desen No. |
SGPT-278-7 |
SGPT-312-7 |
SGPT-278-962 |
SGPT-312-962 |
|
|
Konekte fil |
Anwo |
2 7/8" Bwat tip fil |
3 1/2" Bwat tip fil |
2 7/8" Bwat tip fil |
3 1/2" Bwat tip fil |
|
Pi ba |
2 7/8" PIN tip fil |
3 1/2" PIN tip fil |
2 7/8" PIN tip fil |
3 1/2" PIN tip fil |
|
|
ID |
2.44 "(Φ62mm) |
2.99 "(Φ76mm) |
2.44 "(Φ62mm) |
2.99 "(Φ76mm) |
|
|
Travèse twou |
1/4" NPT |
1/4" NPT |
1/4" NPT |
1/4" NPT |
|
|
Dimansyon fwontyè |
6.02"×43.3" （Φ153×1100） |
6.02"×43.3" （Φ153×1100） |
8.49"×47.2" （Φ215.6×1200） |
8.49"×47.2" （Φ215.6×1200） |
|
|
Anvlòp aplikab |
7" (23-29lb/pye) |
7" (23-29lb/pye) |
9 5/8" (40-47lb/pye) |
9 5/8" (40-47lb/pye) |
|
|
Fòm glise |
/ |
/ |
/ |
/ |
|
|
Elastomère |
HNBR,AFLAS |
HNBR% 2cAFLAS |
HNBR% 2cAFLAS |
HNBR% 2cAFLAS |
|
|
Materyèl |
L{{0}Cr / 3Cr / 13Cr |
L{{0}Cr / 3Cr / 13Cr |
L{{0}Cr / 3Cr / 13Cr |
L{{0}Cr / 3Cr / 13Cr |
|
|
Chaj rupture san danje |
645KN |
921K |
645KN |
921K |
|
|
Tanperati travay |
150 degre, 203 degre |
150 degre, 203 degre |
150 degre, 203 degre |
150 degre, 203 degre |
|
|
Travay presyon |
5000psi |
5000psi |
5000psi |
5000psi |
|
|
Syèj presyon |
3000psi |
3000psi |
3000psi |
3000psi |
|
|
Lage presyon |
37000 liv |
37000 liv |
40000 liv |
40000 liv |
|
|
Faktori estanda |
API 11D1 V3 |
API 11D1 V3 |
API 11D1 V3 |
API 11D1 V3 |
|
2.
|
Desen No. |
SGPT-412-7 |
SGPT-5-7 |
SGPT-512-962 |
SGPT-7-962 |
|
|
Konekte fil |
Anwo |
4 1/2" Bwat kalite fil espesyal |
5 "Bwat kalite fil espesyal |
5 1/2" Bwat kalite fil espesyal |
7" kalite fil espesyal BWAT |
|
Pi ba |
4 1/2" PIN kalite fil espesyal |
5" kalite fil espesyal ZEPENG |
5 1/2" PIN kalite fil espesyal |
7" kalite fil espesyal ZEPENG |
|
|
ID |
3.465 "(Φ88mm) |
3.465 "(Φ88mm) |
4.882 "（Φ124mm) |
4.882 "（Φ124mm) |
|
|
Travèse twou |
1/4" NPT |
1/4" NPT |
1/4" NPT |
1/4" NPT |
|
|
Dimansyon fwontyè |
6.02"×63" （Φ153×1600） |
6.02"×63" （Φ153×1600） |
8.49"×67" （Φ215.6×1700） |
8.49"×67" （Φ215.6×1700） |
|
|
Anvlòp aplikab |
7" (23-29lb/pye) |
7" (23-29lb/pye) |
9 5/8" (40-47lb/pye) |
9 5/8" (40-47lb/pye) |
|
|
Fòm glise |
/ |
/ |
/ |
/ |
|
|
Elastomère |
HNBR% 2cAFLAS |
HNBR% 2cAFLAS |
HNBR% 2cAFLAS |
HNBR% 2cAFLAS |
|
|
Materyèl |
L{{0}Cr / 3Cr / 13Cr |
L{{0}Cr / 3Cr / 13Cr |
L{{0}Cr / 3Cr / 13Cr |
L{{0}Cr / 3Cr / 13Cr |
|
|
Chaj rupture san danje |
943KN |
943 |
1504kn |
1504kn |
|
|
Tanperati travay |
150 degre, 203 degre |
150 degre, 203 degre |
150 degre, 203 degre |
150 degre, 203 degre |
|
|
Travay presyon |
5000psi |
5000psi |
5000psi |
5000psi |
|
|
Syèj presyon |
3000psi |
3000psi |
3000psi |
3000psi |
|
|
Lage presyon |
37000 liv |
37000 liv |
40000 liv |
40000 liv |
|
|
Faktori estanda |
API 11D1 V3 |
API 11D1 V3 |
API 11D1 V3 |
API 11D1 V3 |
|
